Hive 16

The wait is over.



TRUE 16X16MM.

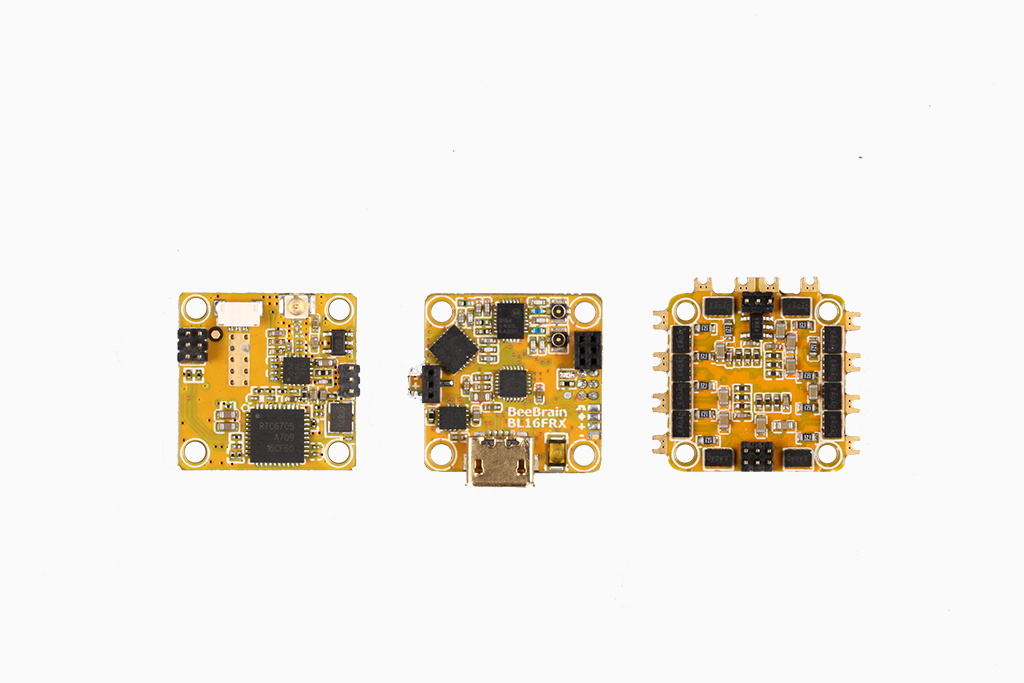

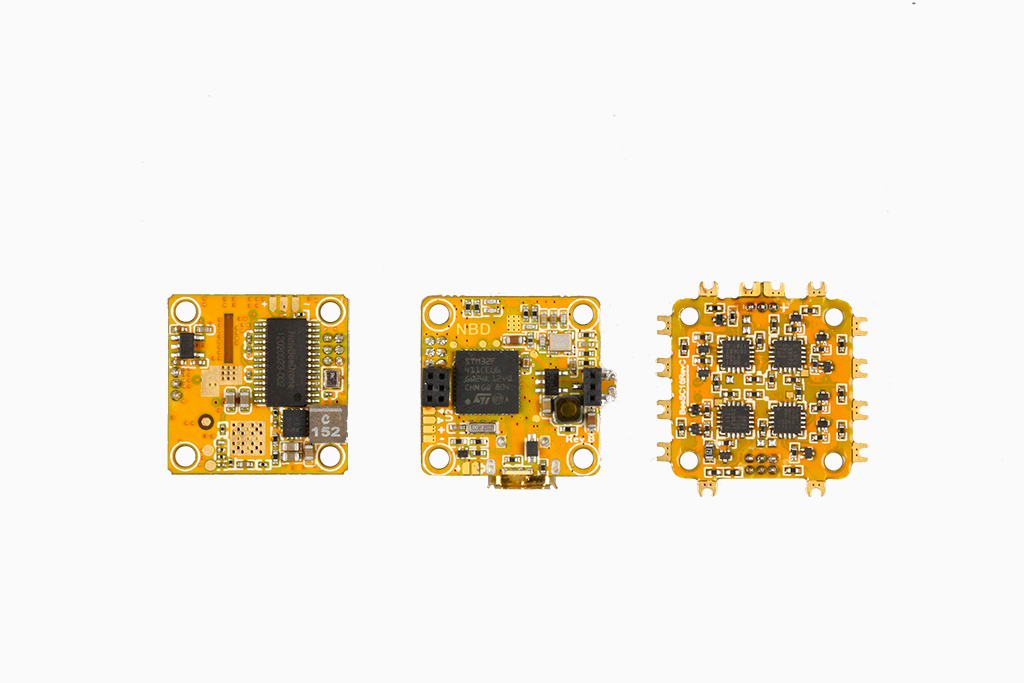

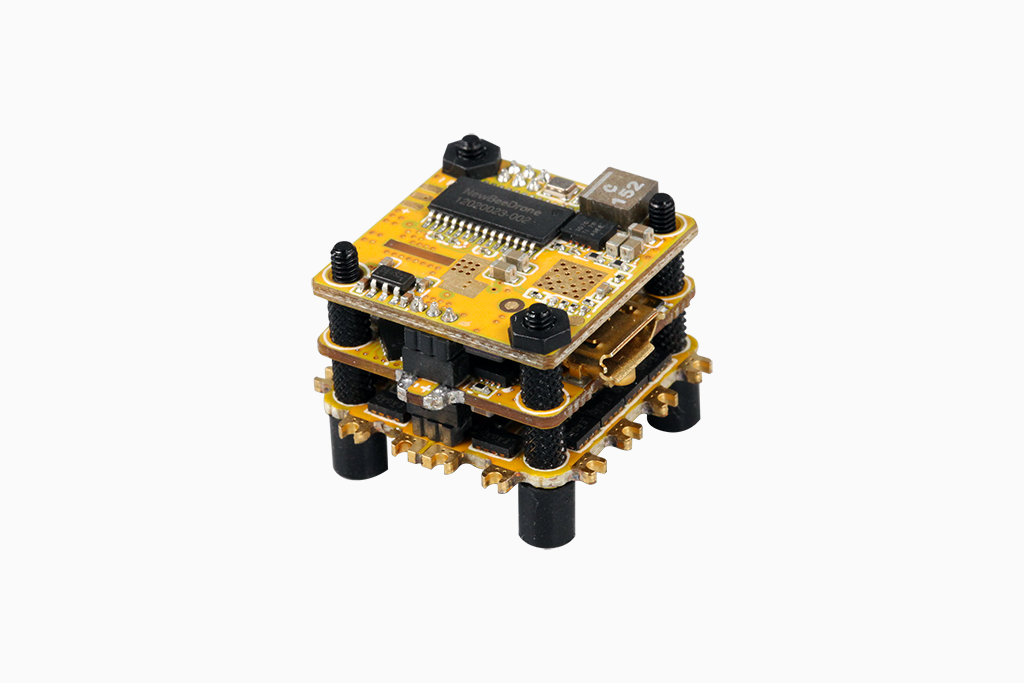

Introducing the smallest true 16x16mm AIO FPV stack on the market. No longer will you struggle to piece together different components and electronics to get your micro class size quad together or sacrifice features in order to save weight. Our convenient and fool-proof stackable design ensures easy and quick assembly or disassembly.


PERFECT FOR TUNING.

The Hive 16 features a F4 CPU flight controller that is perfect for running all current filters in Betaflight ensuring you have the smoothest flight performance possible with plenty of overhead room to spare for tuning to your exact needs.


FULL-RANGE OF SIGNALS.

Built into the flight controller is a FrSky SPI full-range diversity receiver with dual UFL style antennas to ensure the best possible signal reception and easy replacement. External UART pads are also included if you choose to use other receivers such as DSMX or CrossFire.


READY TO GO.

The VTX is an interchangeable 25mw / 200mw power to fit your needs whether it be racing in small-class leagues or doing freestyle for great range and clarity. Full Betaflight OSD is also featured and supports VTX power, channel, band, and PID tuning via OSD as well with smart audio. A JST plug is built in for easy plug and play camera installation for our BeeEye camera, as well as Video, Power, and Ground pads for universal camera use.

Specifications:

  • F411 MCU

  • Built-in FrSky Compatible RX with Dual receiver Antenna

  • BeeSC20 12A (1-2S ONLY) BLHeliS - Supports DShot600

  • Smart Audio w/Full BetaFlight OSD

  • 25mw / 200mw Selectable VTX power
